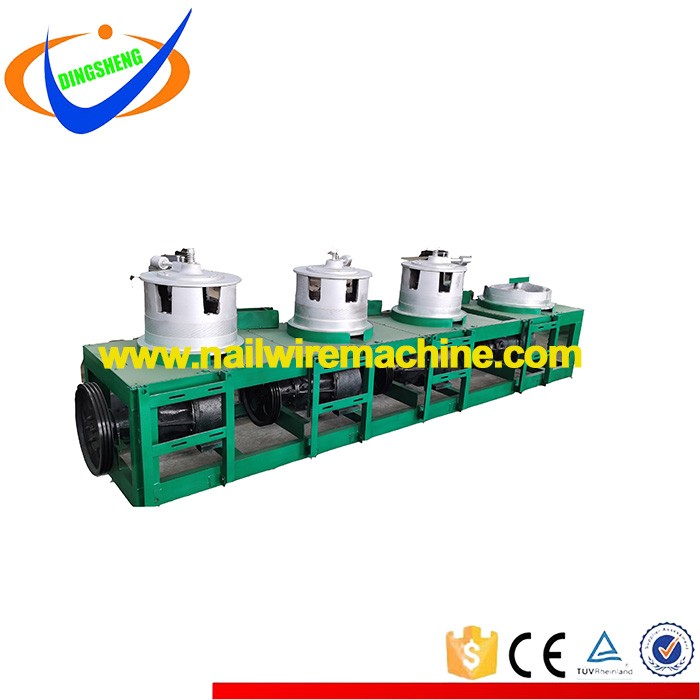

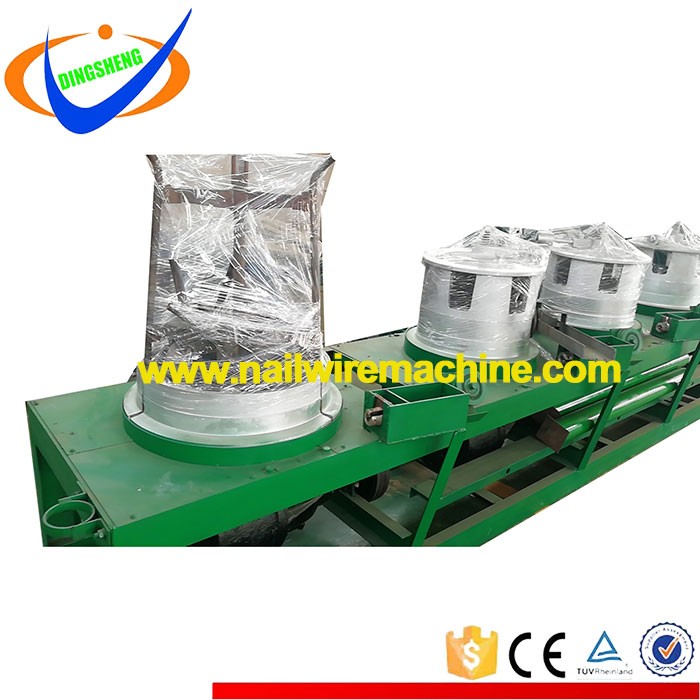

Pulley type wire drawing machine for nails making
Pulley type wire drawing machine for nails makingPulley type wire drawing machine for nails makingPulley type wire drawing machine for nails making

Pulley type wire drawing machine for nails making

  • Product Item:LW-1-6/560
  • Voltage: 380 V/3 Phase/50 Hz
  • Power: 15 Kw + 11 Kw + 11 Kw + 11 Kw
  • Inlet wire diameter: 5.5 mm or 6.5 mm
  • Outlet wire diameter: 3.8 mm or 4.5 mm
  • Steel Wire Drawing Machine , Pulley type wire drawing machine for Africa , nails making factory , nails making and polishing machine
    Inquiry Send Email

    Description

    Pulley type wire drawing machine for nails making

    Dry coil wire drawing machine has the characters of simple structure, easy operation, economy cost and low noise. And for fast wire drawing speed machine, it is with frequency control, energy saving, steady production. Suitable for drawing detailed specifications in a variety of metal wire, especially suitable for drawing low carbon steel wire, galvanized wire, stainless steel wire, aluminum wire rod and copper wire, etc. We use high speed wire drawing machine to produce different gauges nails making wire. The operation of wire drawing machine is very simple and convenient. Meanwhile, when wire broken, need use extra equipments, like a wire welding machine, a wire pointing machine, etc. Wire Drawing Machine has a heavy structure, drawing drum and drawing die boxes. We use Phosphorous bronze gears with high carbon axle steel worms. Many different thicknesses Drawing Wires are available, such as 1.8mm, 2.4mm, 2.8mm 3.15mm, 4.2mm, 5.0mm. The drawn wire is suitable for wire nails, roofing nails, Barbed Wire, Wire Mesh, etc.

    Pulley type wire drawing machine for nails making

    Pulley type wire drawing machine for nails making

    Introduction of pulley type wire drawing machine for nails making
    VERY High-Speed Pulley type wire drawing machine belongs to the pre-processing equipment for wire products. People use a drawing machine to change the shape of the low carbon wire rod into a different gauge. After drawing, thickness and diameter can meet the raw material requirements. Also suitable for roundness, surface smoothness, and straightness, to metal products.

    Thus, wire drawing machine will affect nails making wire quality. If pulley type wire drawing machine working well, nails wire will be more smooth. Because common iron wire nails quality is very important to the nails making company.

    The wire drawing machine belongs to the metal product equipment industry. Applied in the processing of metal products such as steel wires, ropes, and standard parts, etc.

    SPECIFICATIONS OF WIRE MAKING MACHINE
    This equipment consists of the main reduction box.die casing, wheel frame, sash brace, and electrical control system. The spinning drawing blocks are driven by AMIGO series motor, with gear coupling runs changeful gears to reduce speed. Our drawing blocks are vertically fixed in the sealed box body. Our gear pairs are lubricated with oil.
    In order to lower residual heat on the surface of the block, the cooling means is installed in interval of the block. To reduce its working temperature, the machine is soaked in cooling water. Nail making machine runs with carvel or linkage. Machine safety halt gear is installed by the position of operating block.

    Pulley type wire drawing machine for nails making

    cheap wire drawing machine parameters

    Pulley type wire drawing machine for nails making

    WHAT IS WIRE DRAWN PLANT FOR NAILS MAKING

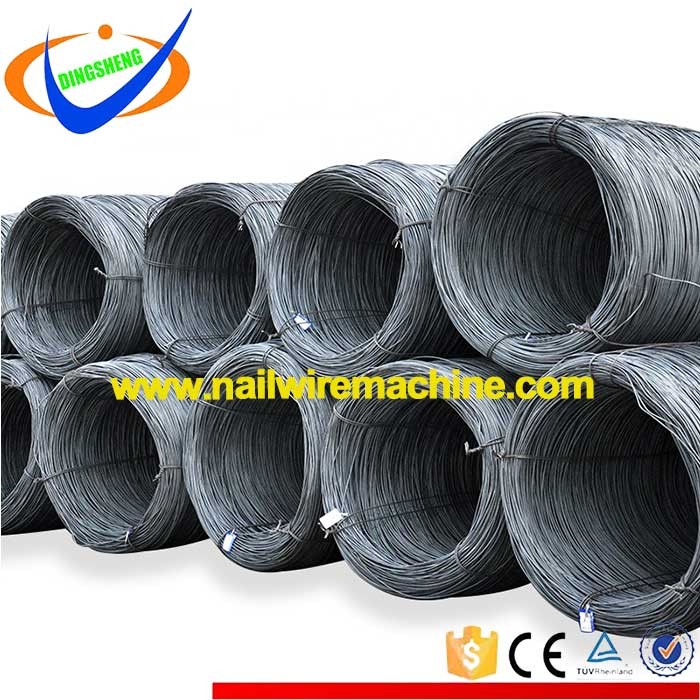

    Wire drawing machine is popular for nails making business in Africa. Clients buy drawing machine and Q195 low carbon wire rod together, then import to their countries. Produce wood nail making wire. One ton raw material will draw out 990kgs wire.

    6.0mm to 2.5mm supply 7 pulling pulley wire drawing machine price
    Performance purpose: the equipment is suitable for processing of 8mm-6mm wire rod and various kinds of metal wire, especially suitable for processing low carbon iron wire, galvanized iron wire, copper wire, aluminum wire, stainless steel wire, rubber hose steel wire, welding wire, etc. Use custom bold type reducer, thickening box body, increase the bearing.
    steel wire drawing machine, Pulley type wire drawing machine for Africa, nails making factory, nails making and polishing machine
