Description

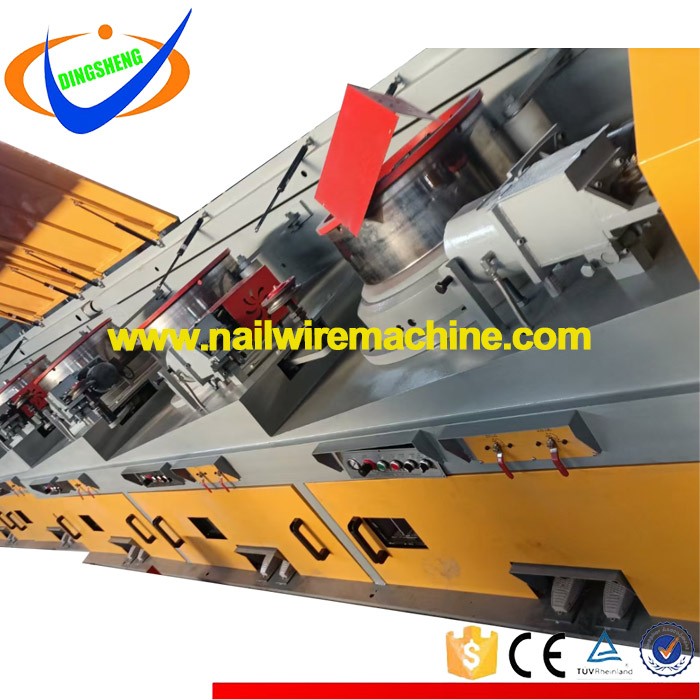

Straight Line wire drawing machine manufacturer in China
The Straight Line Wire Drawing Machine package is equipped with a spooler, the main drawing unit, and a spooler. The coil assembly is driven by a variable frequency motor drive system, and the front of the main cylinder unit is powered. Adjustable drawing box. The tension adjustment mold comprises a base arranged on the machine table, a lubrication cavity arranged above the base and a tower structure and a drawing matrix arranged respectively on the front and rear ends of the lubrication cavity. Straight line drawing machine is widely used, suitable for all wire, low/medium/high carbon steel wire, stainless steel wire, copper wire, welding wire, nail wire, spring wire, gi wire, etc., the appropriate wire diameter range is very large, and can combine with the water tank drawing machine. Our machines are applied to draw the wire in the factories, such as wire-steel factory, wireless mesh factory, nail making factory, and spring factory, etc.
[Application]
The machines for continuous wire drawing machines are now widely used in various industries of metal products, such as steel wire industry, industrial machines for wire ropes, and welding consumables industry. With the rapid development of the metal products industry in these years, there is a great demand for straight drawing machines in various sub-sectors of metal products. Wire drawing machines are used in the metal processing industry. This drawing process is a drawing device for thin-diameter steel wire.
The drawing machine can be divided according to their use of metal wire drawing machine (for standard parts and other metal products manufacturing processing), plastic drawing machine (for plastic materials industry with nylon, polypropylene, polyester, polyethylene, polyester chips as the raw materials to produce all kinds of hollow and solid cable or special equipment flat cable deep garden processing).
We are Straight Line Wire Drawing Machine manufacturers and adheres to the development of science and technology, quality, and development of pragmatic connotation, and has achieved certain results.
|
DSZJ-8/560 Straight line Wire drawing machine |
|
|
Capstan diameter |
560mm |
|
Capstan number |
9 |
|
Inlet wire diameter |
6.5 mm |
|
Outlet wire diameter |
1.5 mm |
|
Production |
2000 kg/hour |
|
Power |
22.5 kw per Capstan |
|
Mold size |
Φ40mm×25 |
|
Take-up wire |

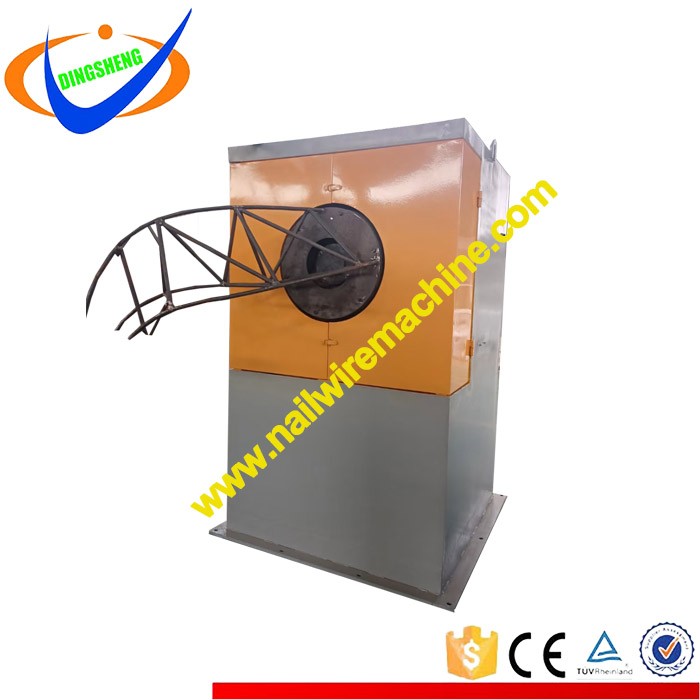

Elephant trunk type take-up system |
|
Die box |
The mould box is composed of mixer and water cooling(4 set) |
|
Mold box cooling |
The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good. |
[Features]
Straight line wire drawing machine is adopted AC variable-frequency control technology (or DC programmable control system). Machine has high automatic level, easy operation and high quality of drawing product.
Capstan is adopted narrow slit water cooling. Drawing dies is adopted direct water cooling, which has good cooling effect.
Machine uses first grade strong narrow V belt and hardened reducer to transmit, which has high transmission efficiency and low noise.
Machine uses fully enclosed protection system that has good security and working environment.
Machine uses gas tension to tune that cause to draw stably.
Error is less than 0.1%.The machine decelerates automatically and stops at fixed length. When wire is broken, machine will test and stop automatically. Any capstan is positive and negative point motion and left and right linkage. The machine will show all kinds of fault information and process information. Moving information is monitored.
The machine supports any mold fitting technology. Mould that is abraded is compensated automatically through tuning, which can prevent breaking wire. Besides, the machine is equipped with wire jumper device that can skip the capstan randomly to draw, which can adapt different technology. According to customers’ requirement, the machine can conduct remote monitoring and remote diagnosis on the basis of industrial Ethernet.
