Straight Line Wire Drawing Machine Factory Price

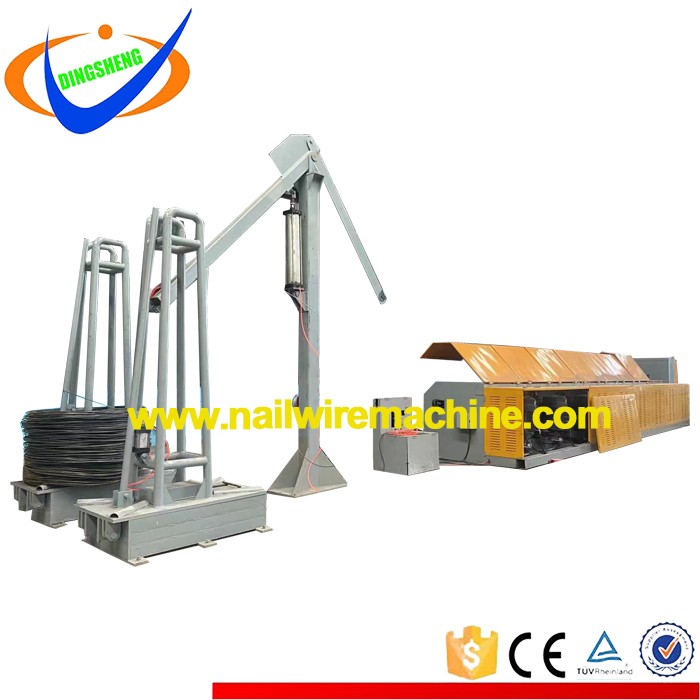

The Straight Line Wire Drawing Machine package is equipped with a spooler, the main drawing unit, and a spooler. The coil assembly is driven by a variable frequency motor drive system, and the front of the main cylinder unit is powered. Adjustable drawing box. The tension adjustment mold comprises a base arranged on the machine table, a lubrication cavity arranged above the base and a tower structure and a drawing matrix arranged respectively on the front and rear ends of the lubrication cavity.
|
DSZJ-8/560 Straight line Wire drawing machine |
|
|
Capstan diameter |
560mm |
|
Capstan number |
9 |
|
Inlet wire diameter |
6.5 mm |
|
Outlet wire diameter |
1.5 mm |
|
Production |
2000 kg/hour |
|
Power |
22.5 kw per Capstan |
|
Mold size |
Φ40mm×25 |
|

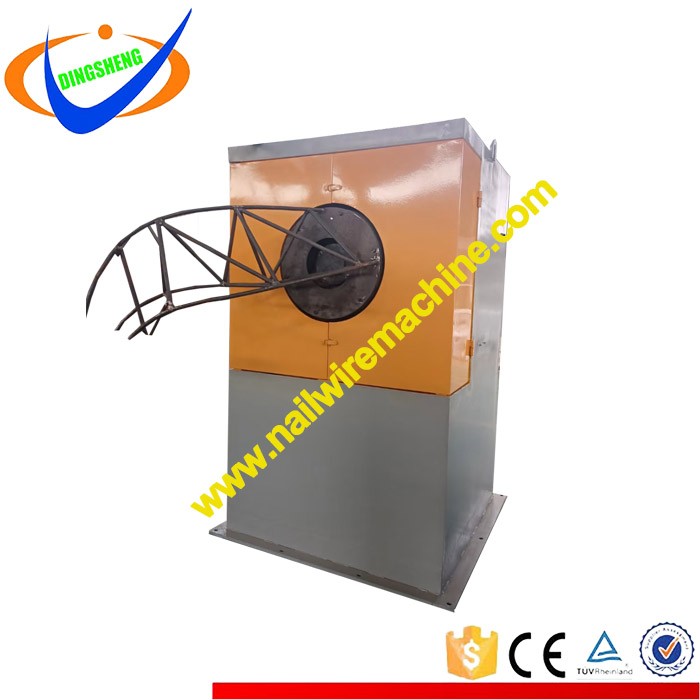

Take-up wire |
Elephant trunk type take-up system |
|
Die box |
The mould box is composed of mixer and water cooling(4 set) |
|
Mold box cooling |
The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good. |
[Application]
The machines for continuous wire drawing machines are now widely used in various industries of metal products, such as steel wire industry, industrial machines for wire ropes, and welding consumables industry. With the rapid development of the metal products industry in these years, there is a great demand for straight drawing machines in various sub-sectors of metal products. Wire drawing machines are used in the metal processing industry. This drawing process is a drawing device for thin-diameter steel wire.
The drawing machine can be divided according to their use of metal wire drawing machine (for standard parts and other metal products manufacturing processing), plastic drawing machine (for plastic materials industry with nylon, polypropylene, polyester, polyethylene, polyester chips as the raw materials to produce all kinds of hollow and solid cable or special equipment flat cable deep garden processing).
We are Straight line wire drawing machine manufacturers and adheres to the development of science and technology, quality, and development of pragmatic connotation, and has achieved certain results.
